Winter Fishing Live Sonar Rotator ( DIY Kit Mounting Parts Only )

DIY Live Sonar Rotator Parts Kit — High-Strength 3D Printed Mounts

Build your own custom setup with our professional hardware kit. This option includes all the essential 3D-printed components, allowing you to attach them to your own pole. Perfect for international buyers looking to save on shipping or anglers who prefer a custom shaft length.

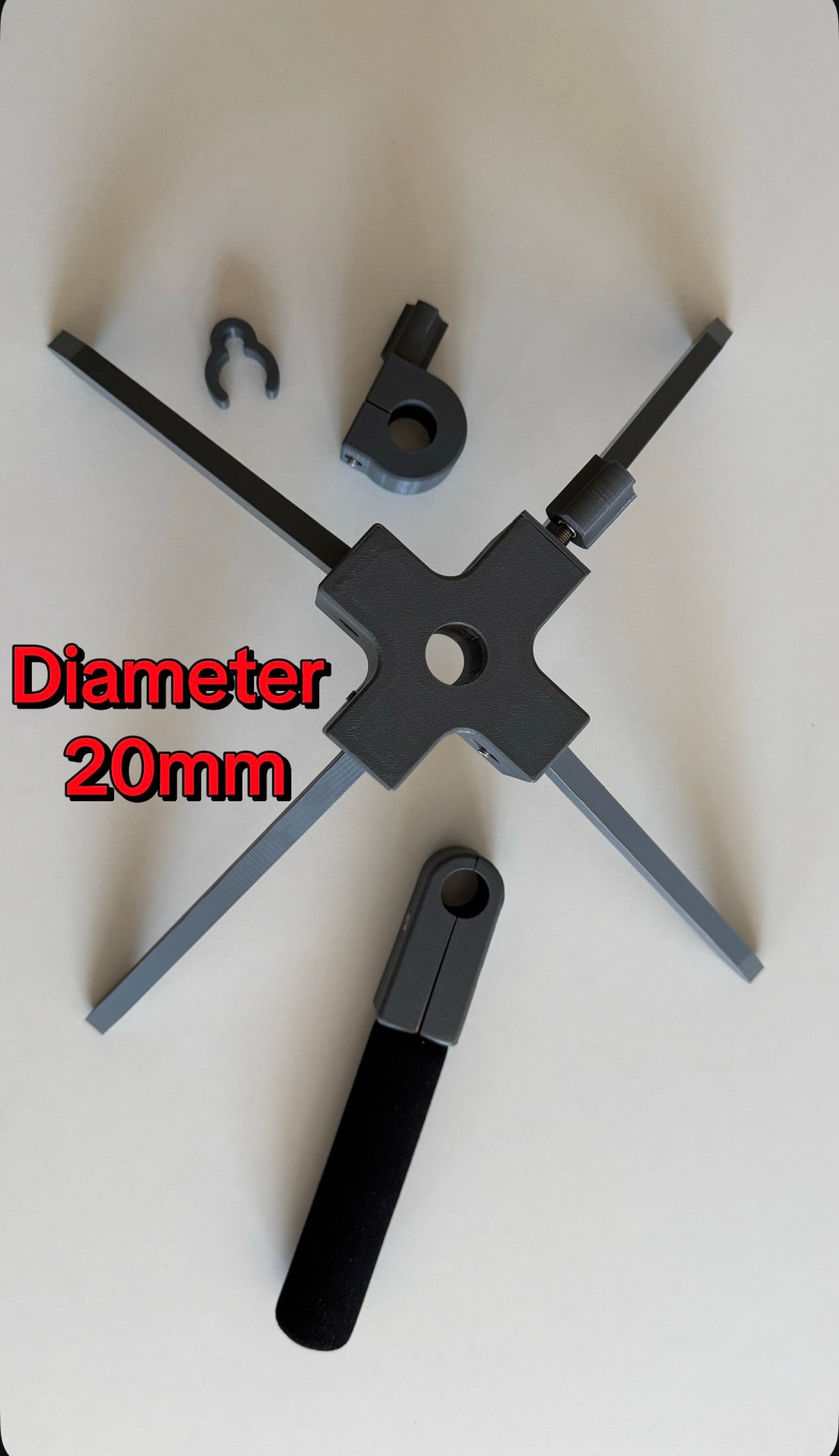

• Compatibility: Designed specifically for 20mm diameter tubes.

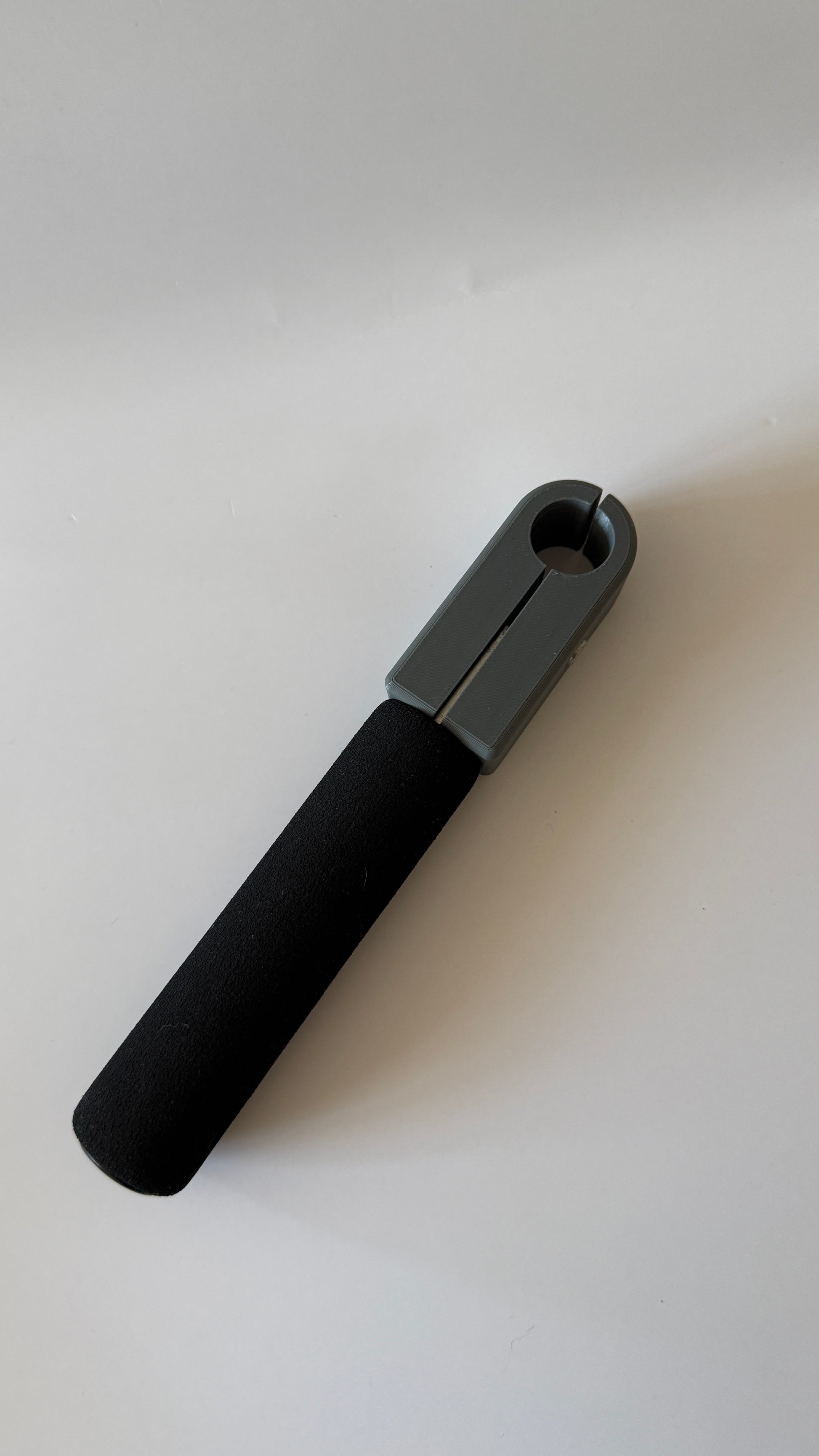

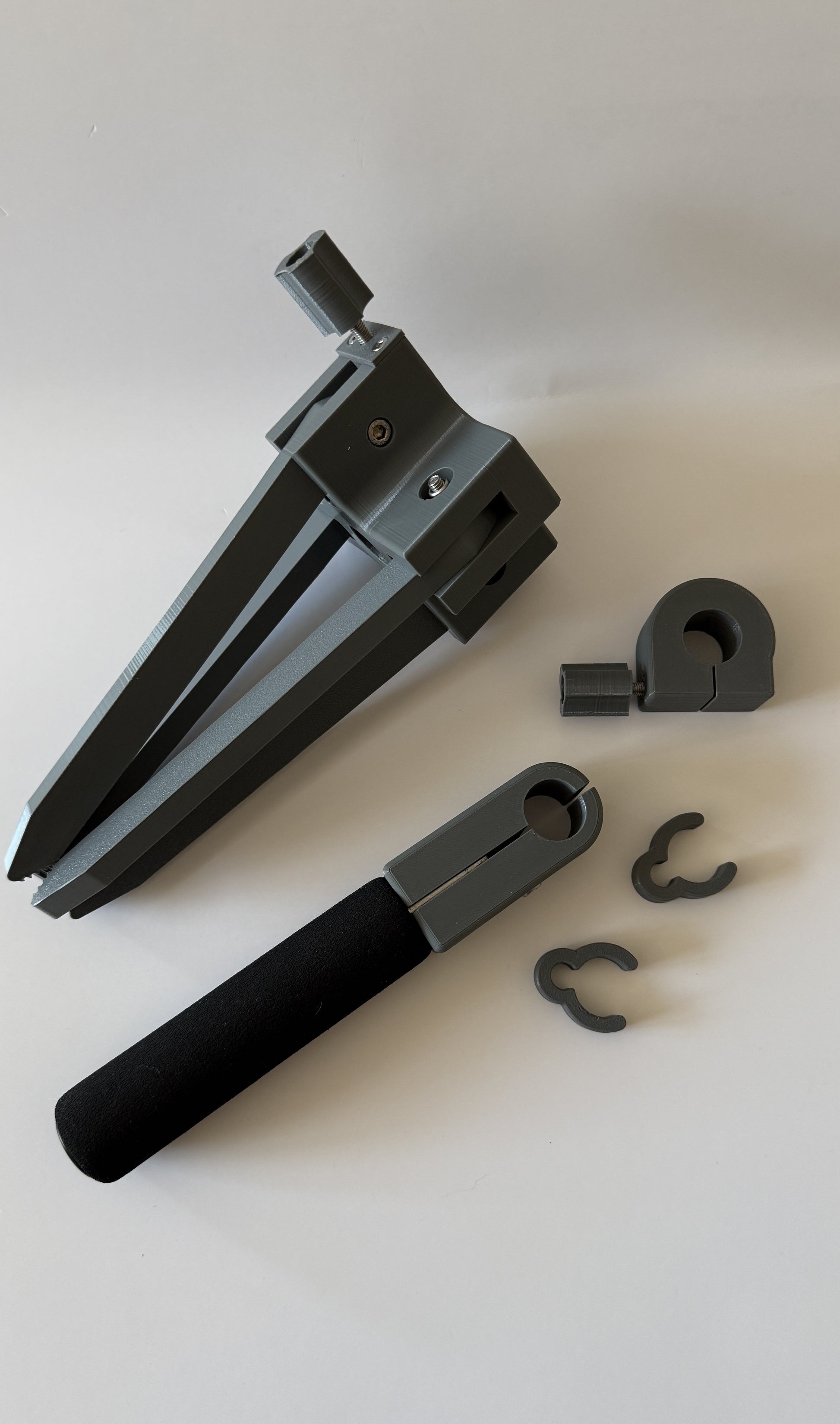

• What’s Inside: All 3D-printed joints, handle grip, and mounting hardware, cable clamp for 8-9mm cable.
• Customizable: You choose the material and length of your rod (aluminum, carbon, etc.).


Universal Fit for Any 20mm Pole:

The mounting hardware is compatible with any tube or pipe with a 20mm outer diameter. This gives you the flexibility to choose your preferred material:

• Aluminum for a balance of strength and weight.
• PVC/Plastic for a budget-friendly, lightweight build.
• Carbon Fiber for ultimate performance and aesthetics.
• Stainless Steel for maximum durability.

Assembly Instructions

• Pole Preparation: If using your own shaft, ensure the outer diameter is exactly 20mm.
• Mounting: Slide the 3D-printed components onto the pole. If the fit is too tight, ensure the pole is clean and free of debris.
• Securing: Tighten the mounting bolts until the parts are firm. Caution: Do not over-tighten, as excessive force may damage the printed components.
• Transducer Setup: Attach your Live sonar transducer to the bottom bracket following your electronics manufacturer's guidelines.
• Maintenance: After each use, wipe down the aluminum parts and check that all bolts remain secure.

⚠️ Pro-Tip:
For a perfect grip on very smooth tubes, apply one wrap of electrical tape under the mounting point.
